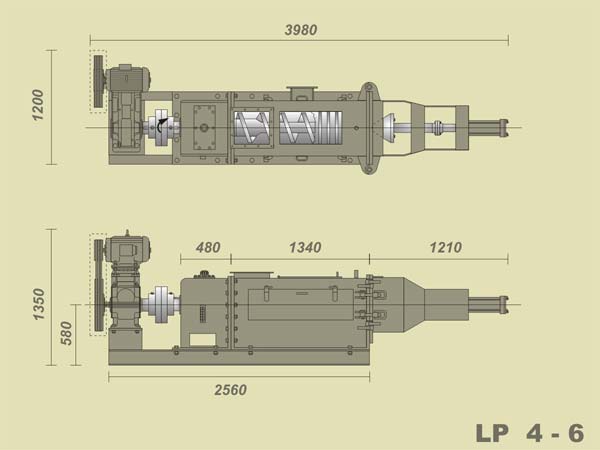

Capacity Type Worm Dimension Revolution Machine Length Machine Width Machine Height Power Consumption Net Weight |
4 -6 Tons FFB/Hour Horizontal Mono Screw Worm 278 mm Diameter x 1020 Long 10 - 12 rpm 3980 mm approx. 1200 mm approx. 1350 mm approx. 15 KW/20 HP TEFC Motor 3000 kgs approx. |
|
Hydraulic Unit Working Pressure Tank Capacity Dimension Power Consumption |
Automatic Reaction Cone Control System Constant Pressure Type 600 - 1200 psi 40 litres 780 mm x 645 mm x 405 mm 1.5 KW/2 HP TEFC Motor |
| Speed Reducer |
Helical Geared Unit c/w Safety Slipping Clutch Pulley |
