Vibrating Screen Separator

Introduction

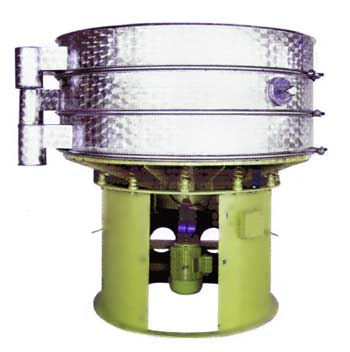

LAJU VIBRATING SEPARATOR (VS-60) has been specially designed and manufactured for palm oil mills. This is a unique and ideal separating machine which includes a vertical type ordinary motor to facilitate "Three Dimensional Motion" composed of circular and elliptic motions in horizontal, vertical and inclinational faces to achieve superb performance as the feed CPO is dispersed from the center equally, hence all parts of screen cloth are fully utilized.

Advantages

- Lower maintenance cost with Ordinary Motor
- Easy to maintain and upkeep
- Reduce Down Time
- Longer Screen Life
- Higher separation efficiency

Specification

Model	VS - 60	VS - 70
Diameter	60"	70"
No. of Decks	2 x (20/40 MG mesh screen)*	2 x (20/40 MG mesh screen)*
Drive	1500 RPM (3 Separation)	1500 RPM (3 Separation)
Motor	4 HP 380 V 3 Phase 50 Hz	5.5 HP 380 V 3 Phase 50 Hz

* Size of screen meshes can be prefered in accordance with the requirements.

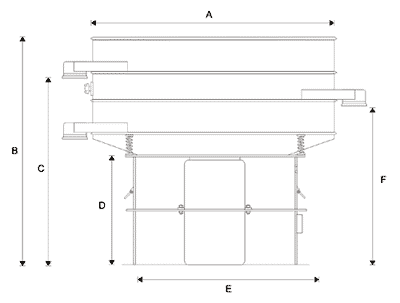

Model	A	B	C	D	E	F	Net. Weight
Model	mm	mm	mm	mm	mm	mm	KG
VS - 60	1500	1600	950	760	1100	730	450
VS - 70	1800	1800	1200	760	1450	850	800

The manufacturer reserve the right to modify for alter the design of the machine that seem necessary without prior notice.
