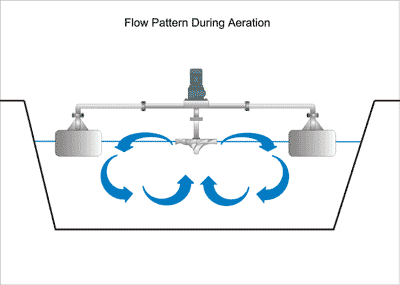

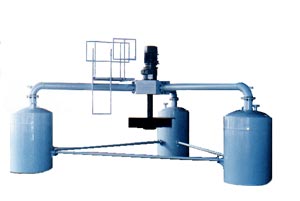

Low Speed Floating Aerator
Specification
| Model
| Rated (kW) |
Speed (RPM) |
OTR (Kg) |
ZCM (M) |
DS (M) |
ZOD Dia. (M) |
PRU (M3/Min) |
| LA - 5.5 Hp |
4 |
103 |
2.0 |
5 - 12 |
4 |
36 |
28 |
| LA - 7.5 Hp |
5.5 |
95 |
1.8 |
7 - 15 |
4 |
45 |
35 |
| LA - 10 Hp |
7.5 |
82 |
2.0 |
7 - 15 |
4 |
45 |
44 |
| LA - 15 Hp |
11 |
75 |
2.0 |
9 - 20 |
5 |
51 |
48 |
| LA - 20 Hp |
15 |
75 |
2.0 |
10 - 30 |
5 |
60 |
60 |
| LA - 25 Hp |
18.5 |
45 |
1.9 |
10 - 30 |
6 |
60 |
80 |
| LA - 30 Hp |
22 |
50 |
1.9 |
12 - 36 |
6 |
75 |
100 |
| LA - 40 Hp |
30 |
50 |
1.6 |
12 - 36 |
6 |
75 |
120 |
| LA - 50 Hp |
37.5 |
54 |
1.8 |
12 - 36 |
7 |
75 |
160 |
| LA - 60 Hp |
45 |
60 |
1.8 |
15 - 40 |
7 |
82 |
180 |
| LA - 75 Hp |
55 |
68 |
1.8 |
15 - 40 |
8 |
82 |
220 |
| LA - 100 Hp |
75 |
34 |
1.9 |
18 - 50 |
8 |
90 |
260 |
N.B: Torelance is approx. 10%
OTR: Oxygen Transfer Rate at Std condition, Kg of oxygen per kilowatt
per hour (base on motor output power)
ZCM: Zone of Complete Mix
DS: Diameter of the Spray
ZOD: Zone of complete Oxygen Dispersion
PRU: Pumping Rate thru Unit

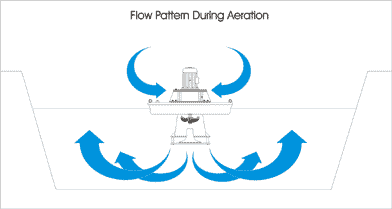

High Speed Floating Aerator
Specification
| Model |
Rated (KW) |
Speed (RPM) |
OTR (Kg) |
ZCM ( M ) |
NOD ( M ) |
ZOD ( M ) |
PRU (M3/Min) |
| HA - 2 HP |
1.5 |
1500 |
2.3 |
12 |
2 |
44 |
8.20 |
| HA - 3 HP |
2.2 |
1500 |
2.3 |
12 |
2 |
44 |
10.40 |
| HA - 5.5 HP |
4 |
1500 |
2.3 |
14 |
2 |
46 |
13 |
| HA - 7.5 HP |
5.5 |
1500 |
2.2 |
15 |
2.5 |
50 |
14.20 |
| HA - 10 HP |
7.5 |
1500 |
2.1 |
16 |
3 |
52 |
19 |
| HA - 15 HP |
11 |
1500 |
2.1 |
19 |
3 |
60 |
23 |
| HA - 20 HP |
15 |
1500 |
2 |
22 |
3 |
70 |
31.50 |
| HA - 25 HP |
18.5 |
1500/960 |
2.1 |
24 |
3 |
78 |
37 |
| HA - 30 HP |
22 |
960 |
2.1 |
27 |
3 |
85 |
48 |
| HA - 40 HP |
30 |
960 |
2.3 |
31 |
3 |
100 |
53 |
| HA - 50 HP |
37.5 |
960 |
2.1 |
32 |
3.5 |
101 |
70 |
| HA - 60 HP |
45 |
960 |
2.1 |
35 |
3.5 |
107 |
78 |
| HA - 75 HP |
55 |
960 |
1.8 |
40 |
3.5 |
116 |
86 |
| HA - 100 HP |
75 |
960 |
1.9 |
46 |
4.5 |
134 |
155 |
NB: Tolerance is approximately 10%
OTR: Oxygen Transfer Rate at Std. condition, Kg of Oxygen per Kilowatt per Hour (Base on motor output power)
ZCM: Zone of Complete Mix
NOD: Nominal Operating Depth
ZOD: Zone of complete Oxygen Dispersion
PRU: Pumping Rate thru Unit

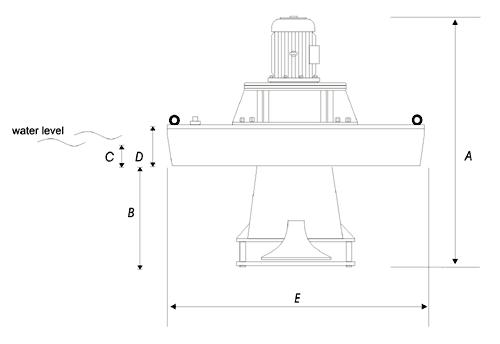

Dimension
| Model |
KW |
Approx. Weight (Kg) |
Dimensions (Cm) |
Shaft Dia. (Cm) |
Mooring Cable (Cm) |
| A |
B |
C |
D |
E |
| HA - 2 HP |
1.5 |
205 |
105 |
24 |
8 |
28 |
165 |
3.18 |
.476 |
| HA - 3 HP |
2.2 |
250 |
110 |
24 |
11 |
28 |
165 |
3.18 |
.476 |
| HA - 5.5 HP |
4 |
260 |
130 |
24 |
12 |
28 |
165 |
3.18 |
.476 |
| HA - 7.5 HP |
5.5 |
400 |
145 |
28 |
10 |
30 |
180 |
4.45 |
.476 |
| HA - 10 HP |
7.5 |
410 |
135 |
28 |
12 |
30 |
180 |
4.45 |
.476 |
| HA - 15 HP |
11 |
580 |
220 |
61 |
14 |
36 |
214 |
5.08 |
.476 |
| HA - 20 HP |
15 |
655 |
223 |
61 |
15 |
36 |
214 |
5.08 |
.476 |
| HA - 25 HP |
18.5 |
795 |
185 |
45 |
16 |
40 |
240 |
5.08 |
.476 |
| HA - 30 HP |
22.5 |
875 |
191 |
45 |
16 |
40 |
240 |
6.35 |
.635 |
| HA - 40 HP |
30 |
1270 |
228 |
74 |
16 |
40 |
290 |
6.35 |
.635 |
| HA - 50 HP |
37.5 |
1405 |
240 |
74 |
16 |
40 |
290 |
6.35 |
.635 |
| HA - 60 HP |
45 |
1495 |
248 |
74 |
16 |
40 |
290 |
6.99 |
.635 |
| HA - 75 HP |
55 |
2150 |
320 |
120 |
24 |
56 |
300 |
8.26 |
.953 |
| HA - 100 HP |
75 |
2290 |
320 |
120 |
24 |
56 |
300 |
8.89 |
.953 |
The manufacturer reserve the right to modify for alter the design of the machine that seem necessary without prior notice.
