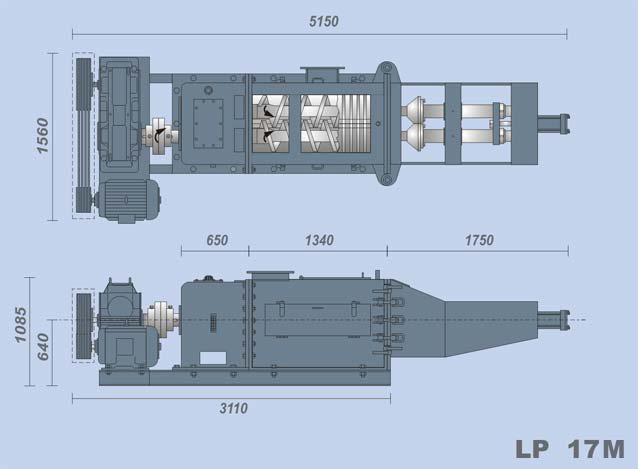

Capacity Type Worm Dimension Revolution Machine Length Machine Width Machine Height Power Consumption Net Weight |
15 -18 Tons FFB/Hour Horizontal Double Screw Worm 305 mm Diameter x 1067 Long 10 - 12 rpm 5150 mm approx. 1560 mm approx. 1085 mm approx. 30 KW/40 HP TEFC Motor 6500 kgs approx. |
|
Hydraulic Unit Working Pressure Tank Capacity Dimension Power Consumption |
Automatic Reaction Cone Control System Constant Pressure Type 600 - 1200 psi 60 litres 810 mm x 645 mm x 405 mm 1.5 KW/2 HP TEFC Motor |
| Speed Reducer |
Helical Geared Unit c/w Safety Slipping Clutch Pulley |
